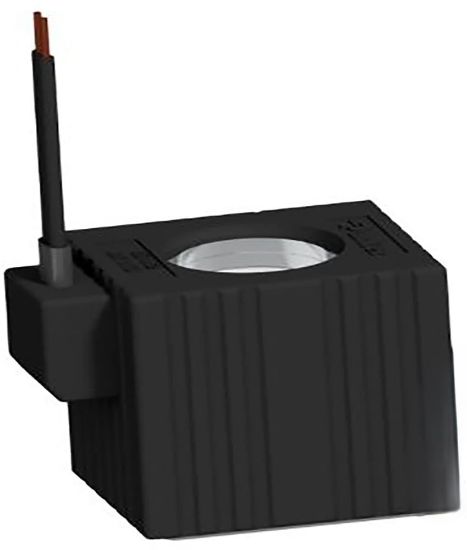

851062-012VDC - 1" DS Coil

Parker’s 1 inch DS Coil is a high power coil often used with 12, 16, and 20 size proportional or on-off solenoid cartridges. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	22 in stock

SKU 851062-012VDC

$148.73/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Dual Lead Wire	Seal Material	n/a
Coil Type	Standard	For Fluid Type	n/a
Maximum Operating Temperature	200 °C	Maximum Flow Rate	n/a
Division	Hydraulic Cartridge Systems Division	Power Consumption	42 W
Current	3.53 A	Minimum Operating Temperature	-40 °C
Function	1" DS Coil	Actuation Type	n/a
Duty Cycle	Continuous @ 100% Voltage	Flow Rate	n/a
Division	Hydraulic Systems Division	Resistance	3.4 Ω
Body Material	n/a	Weight	1.27 lb
Maximum Operating Pressure	n/a
