Plug Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

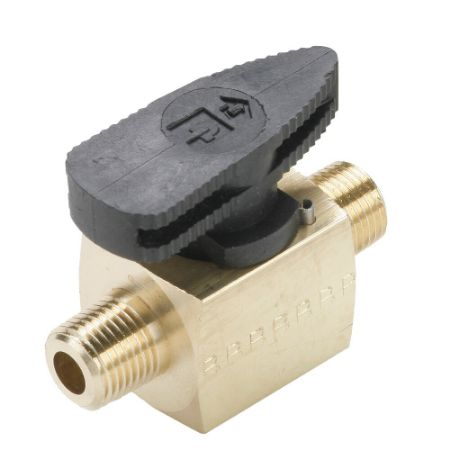

Parker's Plug Valves have an extruded brass body and a one piece Acetal copolymer handle and stem. To assure sealability and reliable performance, the valve must be installed so that the flow media travels in the direction of the arrow on the valve handle. Plug valves are a quarter turn, on or off. A stainless steel stopping pin in the body provides a positive stop action for full shutoff. Quadruple Nitrile o-rings on the stem provides positive sealing.
All plug valves are 100% leak tested and are certified to be leak free to one SCCM.
Parker's plug valves are available in the following styles.
• Female Pipe x Female Pipe
• Female Pipe x Male Pipe
• Male Pipe x Male Pipe
Markets:
• Industrial
• Pneumatic
• Factory/Process Automation
Features/Benefits:
• One Piece Stem/Handle
• Extruded Brass Body
• 100% Leak Tested
• Nitrile Seals
• Quarter Turn On – Off
Applications:
• Air Lines
• Cooling Lines
• Machine Tool
• Fluid Transfer
Read More...All plug valves are 100% leak tested and are certified to be leak free to one SCCM.
Parker's plug valves are available in the following styles.
• Female Pipe x Female Pipe
• Female Pipe x Male Pipe
• Male Pipe x Male Pipe
Markets:
• Industrial
• Pneumatic
• Factory/Process Automation
Features/Benefits:
• One Piece Stem/Handle
• Extruded Brass Body
• 100% Leak Tested
• Nitrile Seals
• Quarter Turn On – Off
Applications:
• Air Lines
• Cooling Lines
• Machine Tool
• Fluid Transfer
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Style | Style | Connection 1 Style | Connection 2 Thread Size (inch) | Connection 1 Thread Size (inch) | Minimum Operating Temperature | Dimensional Weight | Division | Maximum Operating Temperature | Stem Material | Seal Material | Body Material | Maximum Operating Pressure | O-Ring Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PV607-2 | 2 Limited Stock | 56 in stock | $40.10/each | EA | In Line | Male Pipe | Pipe to Pipe | Male Pipe | 1/8 | 1/8 | -40 °F | 0.27594424460431655 lb | Fluid System Connectors Division | 175 °F | Acetal | Nitrile | Brass | 250 psi | Nitrile | |
| PV607-4 | 13 in stock | 59 in stock | $41.27/each | EA | In Line | Male Pipe | Pipe to Pipe | Male Pipe | 1/4 | 1/4 | -40 °C | 0.27594424460431655 lb | Fluid System Connectors Division | 175 °F | Acetal | Nitrile | Brass | 250 psi | Nitrile | |
| PV608-2 | 2 Limited Stock | 80 in stock | $40.10/each | EA | In Line | Male Pipe | Female Pipe to Male Pipe | Female Pipe | 1/8 | 1/8 | -40 | 0.27594424460431655 | Fluid System Connectors Division | 175 | Acetal | Nitrile | Brass | 250 | Nitrile | |
| PV608-4 | 53 in stock | 110 in stock | $41.27/each | EA | In Line | Male Pipe | Female Pipe to Male Pipe | Female Pipe | 1/4 | 1/4 | -40 °C | 0.27594424460431655 lb | Fluid System Connectors Division | 79 °C | Acetal | Nitrile | Brass | 250 psi | Nitrile | |
| PV609-2 | 6 in stock | 31 in stock | $40.10/each | EA | In Line | Female Pipe | Female Pipe to Female Pipe | Female Pipe | 1/8 | 1/8 | -40 °C | 0.27594424460431655 lb | Fluid System Connectors Division | 79 °C | Acetal | Nitrile | Brass | 17 bar | Nitrile | |
| PV609-4 | 12 in stock | 28 in stock | $41.27/each | EA | In Line | Female Pipe | Female Pipe to Female Pipe | Female Pipe | 1/4 | 1/4 | -40 °F | 0.27594424460431655 lb | Fluid System Connectors Division | 175 °F | Acetal | Nitrile | Brass | 17 bar | Nitrile |
