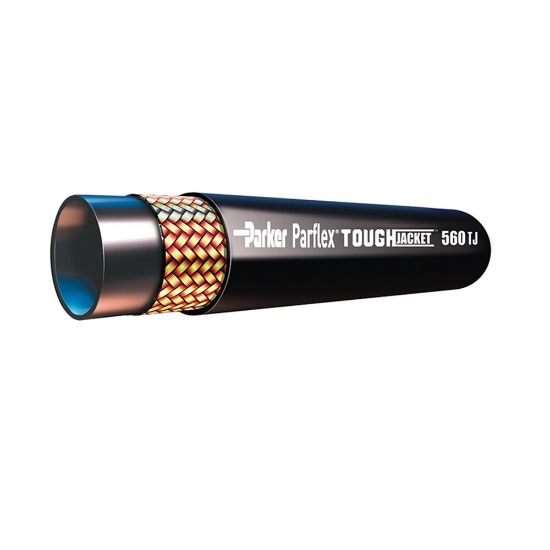

560TJ-3 - 100R1 Hose - 560TJ

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.
Manufacturer: Parker
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:956 in stock
SKU 560TJ-3
$5.56/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/16
Hose StyleSingleMediaWater
Design Factorn/aHose Cover TypeToughJACKET™
Cover MaterialPolyurethaneMinimum Operating Temperature-40 °C
Minimum Bend Radius19 mmProduct StyleStandard
Hose Reinforcement MaterialBraid of High Tensile Steel WireSpecifications MetSAE J517 and 100R1, Type AT
ApplicationManufacturingMaximum Operating Pressure3626 psi
Weight0.11 kg/mInside Diameter3/16 inch
Outside Diameter0.390 inchSize-3
DivisionParflex DivisionMaximum Operating Temperature250 °F
Compatible Fitting56 SeriesHose Inner Tube MaterialCopolyester
