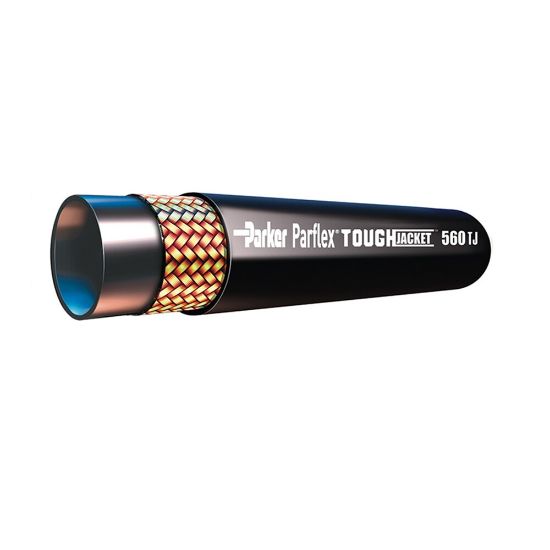

560TJ-6 - 100R1 Hose - 560TJ

Name: 560TJ-6 - 100R1 Hose - 560TJ
SKU: 560TJ-6
Price: 4.81 USD
Availability: InStock

Thermoplastic 560TJ TOUGHJACKET™ Series Hydraulic Hose utilizes a specially formulated jacket material for maximum abrasion resistance which exceeds comparable hoses by 100%.

Manufacturer: Parker

Availability:

619 in stock

Olivette, MO	607
TOPEKA, KS	12

Partner Available:

3964 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 560TJ-6

$4.81/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Hose Style	Single	Product Style	Standard
Specifications Met	SAE J517 and 100R1, Type AT	Hose Reinforcement Material	Braid of High Tensile Steel Wire
Application	Industrial	Inside Diameter	3/8 inch
Weight	0.21 kg/m	Maximum Operating Pressure	2750 psi
Outside Diameter	0.610 inch	Size	-6
Division	Parflex Division	Design Factor	n/a
Compatible Fitting	56 Series	Maximum Operating Temperature	250 °F
Hose Inner Tube Material	Copolyester	Media	Water
Hose Cover Type	ToughJACKET™	Minimum Bend Radius	2 inch
Minimum Operating Temperature	-40 °F	Cover Material	Polyurethane
