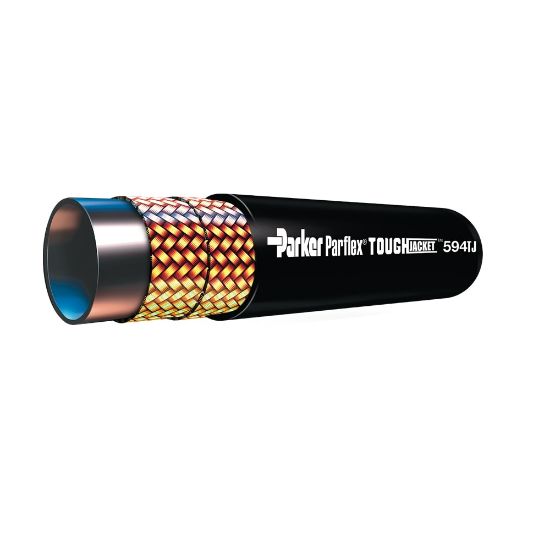

594TJ-10 - 100R19 Hose - 594TJ

The 594TJ TOUGHJACKET™ 4,000 PSI HOSE is a 4,000 psi hose featuring maximum abrasion resistance. Meets SAE 100R19. Available in long, continuous lengths and as bonded hose and/or formed hose assembly.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 594TJ-10

$10.95/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Division	Parflex Division	Application	Medium Pressure Hydraulics
Media	Lubricants (Oils)	Maximum Operating Pressure	280
Maximum Operating Temperature	212	Minimum Operating Temperature	-40
Specifications Met	MSHA	Weight	0.59
Outside Diameter	0.490	Size	-10
Cover Material	Polyurethane	Inside Diameter	5/8
Compatible Fitting	43 Series	Minimum Bend Radius	4
Hose Inner Tube Material	Copolyester	Hose Reinforcement Material	Braid of High Tensile Steel Wire
Design Factor	4:1	Hose Cover Type	ToughJACKET™
