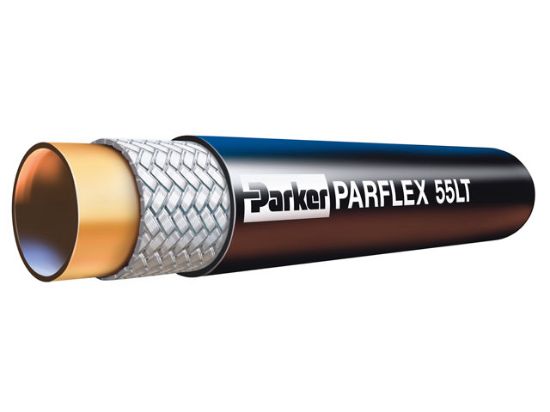

55LT-2 - 100R7 Hose - 55LT

Parker's Low Temperature Hydraulic Hose maintains superior flexibility in cold temperatures, meets SAE 100R7, and is designed for construction and agriculture equipment in cold climates.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 55LT-2

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/8
Hose Style	Obsolete, Single	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	56 Series	Design Factor	4:1
Maximum Operating Temperature	212	Media	Air
Minimum Operating Temperature	-70	Cover Material	Copolyester
Specifications Met	SAE 100R7	Product Style	Single Line
Application	Cold Applications	Hose Reinforcement Material	Fiber
Minimum Bend Radius	1/2	Outside Diameter	0.340
Weight	0.03	Maximum Operating Pressure	3000
Inside Diameter	1/8	Division	Parflex Division
Size	-2	Pkg Qty	250
Mating Fitting Series	57	UOM	FT
Material	Thermoplastic	Inner Diameter	0.125 Inch
Working Pressure	3000 PSI (210 bar)	Pkg Qty/UOM	250 FT
Parker Group	Fluid Connector	Inch/Metric	Inch
Inner Diameter Inch/mm	Inch	Parker Division	Parflex
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)	Inner Diameter	0.125 Inch
Hose Pressure Range	Medium	Material	Thermoplastic
Specification	SAE 100R7	Mating Fitting Series	57
Series	55LT	Distinct Properties	Low Tempurature
