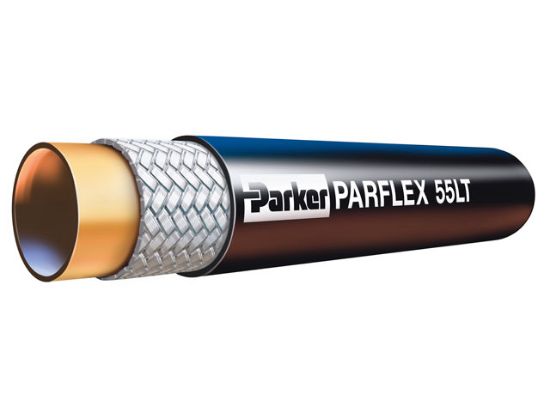

55LT-6 - 100R7 Hose - 55LT

Name: 55LT-6 - 100R7 Hose - 55LT
SKU: 55LT-6
Price: 5.80 USD
Availability: InStock

Parker's Low Temperature Hydraulic Hose maintains superior flexibility in cold temperatures, meets SAE 100R7, and is designed for construction and agriculture equipment in cold climates.

Availability:

428 in stock

Olivette, MO	353
Kansas City, KS	75

Partner Available:

1589 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 55LT-6

$5.80/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Hose Style	Single	Minimum Bend Radius	2 inch
Specifications Met	SAE 100R7	Product Style	Single Line
Minimum Operating Temperature	-57 °C	Hose Reinforcement Material	Fiber
Application	Mobile Hydraulic Equipment	Weight	0.14 kg/m
Outside Diameter	16.5 mm	Maximum Operating Pressure	155 bar
Inside Diameter	10 mm	Division	Parflex Division
Size	-6	Compatible Fitting	56 Series
Maximum Operating Temperature	212 °F	Hose Inner Tube Material	Polyamide (PA)
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Cover Material	Copolyester	Working Pressure	2250 PSI (160 bar)
Inner Diameter	0.375 Inch	Material	Thermoplastic
Pkg Qty/UOM	250 FT	Pkg Qty	250
Mating Fitting Series	55	UOM	FT
Parker Group	Fluid Connector	Inch/Metric	Inch
Inner Diameter Inch/mm	Inch	Inner Diameter	0.375 Inch
Parker Division	Parflex	Working Pressure Range	2000 to 2999 PSI ( 138 to 207 bar)
Hose Pressure Range	Medium	Material	Thermoplastic
Specification	SAE 100R7	Mating Fitting Series	55
Series	55LT	Distinct Properties	Low Tempurature
