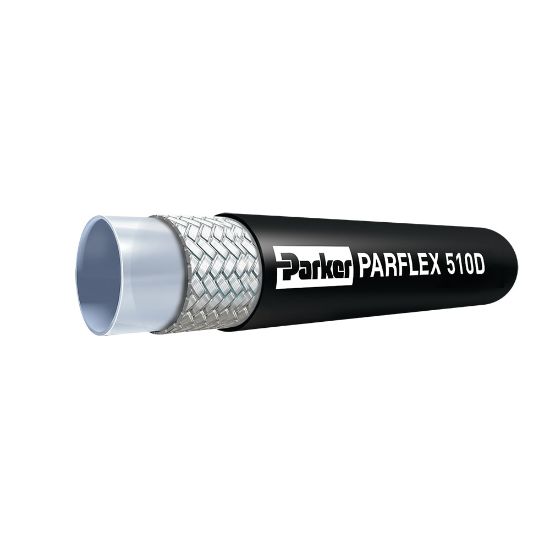

510D-12 - 100R7 Hydraulic Hose - 510D

Name: 510D-12 - 100R7 Hydraulic Hose - 510D
SKU: 510D-12
Price: 11.38 USD
Availability: InStock

Parker's 510D hydraulic hose reduces noise in hydraulic systems. Quick connect fittings to speed up installation and it has a low for to flex for tighter routing.

Manufacturer: Parker

Availability:

97 in stock

Kansas City, KS	42
Springfield, MO	29
Wichita, KS	24
Peoria, IL	2

Partner Available:

2089 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 510D-12

$11.38/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Minimum Operating Temperature	-40 °C	Minimum Bend Radius	127 mm
Hose Reinforcement Material	Fiber	Application	Agriculture Equipment
Specifications Met	ISO 3949, Type R7-1	Inside Diameter	19 mm
Maximum Operating Pressure	8.8 MPa	Outside Diameter	26.7 mm
Weight	0.25 lb/ft	Division	Parflex Division
Size	-12	Compatible Fitting	56 Series
Maximum Operating Temperature	212 °F	Hose Inner Tube Material	Polyamide (PA)
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Cover Material	Polyurethane
