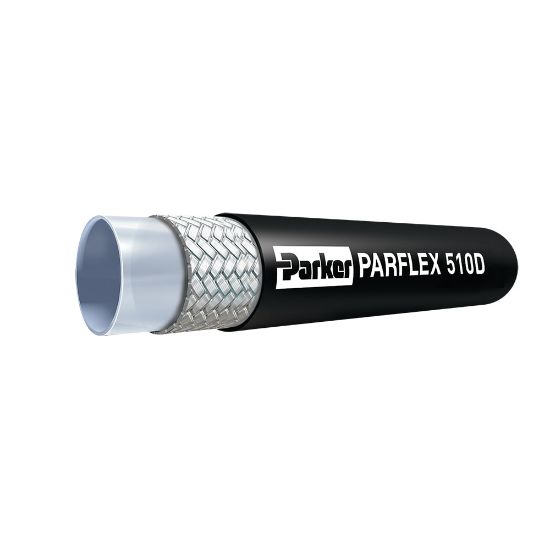

510D-5 - 100R7 Hydraulic Hose - 510D

Parker's 510D hydraulic hose reduces noise in hydraulic systems. Quick connect fittings to speed up installation and it has a low for to flex for tighter routing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1046 in stock

SKU 510D-5

$5.99/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Division	Parflex Division	Application	Forestry
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	17.5 MPa
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-40 °C
Specifications Met	ISO 3949, Type R7-1	Weight	0.11 lb/ft
Outside Diameter	14.6 mm	Size	-5
Cover Material	Polyurethane	Inside Diameter	8 mm
Compatible Fitting	56 Series	Minimum Bend Radius	44 mm
Hose Inner Tube Material	Polyamide (PA)	Hose Reinforcement Material	Fiber
Design Factor	4:1
