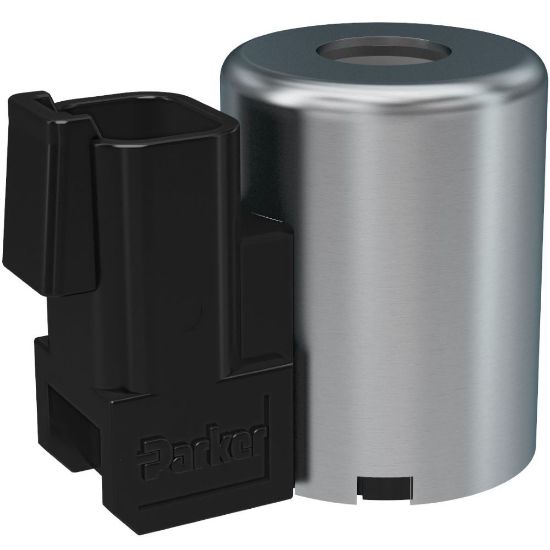

SW7LHD012 - 1/2" Short Coil

Name: SW7LHD012 - 1/2" Short Coil
SKU: SW7LHD012
Price: 32.41 USD
Availability: InStock

Parker's -8 size proportional pressure reducing/relieving valves are complemented by a robust, hermetically sealed, IP69K rated selection of SW7L family coils. 12 & 24 voltage options available, along with 3 termination style options.

Manufacturer: Parker

Availability:

4 in stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SW7LHD012

$32.41/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Power Consumption	14 Watt
Input Voltage	12 VDC	Connection Type	Integral Deutsch
Diode Included	No	Current	1.2 A
Minimum Operating Temperature	-40 °F	Duty Cycle	Continuous @ 100% voltage
Flow Rate	N/A	Weight	.44 lb
Maximum Operating Pressure	N/A	Body Material	N/A
Actuation Type	N/A	Resistance	10.1 Ω
Division	Hydraulic Systems Division	Coil Type	Standard
Division	Hydraulic Cartridge Systems Division	For Fluid Type	N/A
Seal Material	N/A	Maximum Flow Rate	N/A
Maximum Operating Temperature	+200 °C	Function	1/2" Coil, Short
