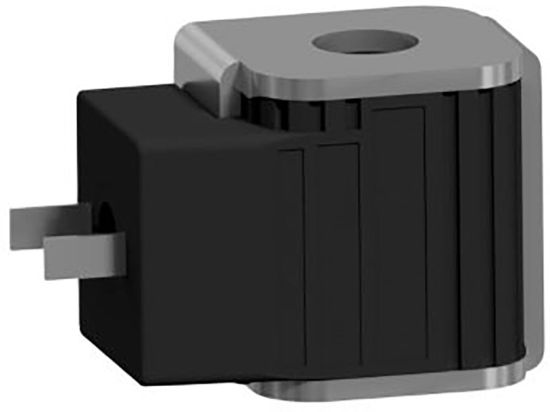

CCP012D - 1/2" Super Coil

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	28 in stock

SKU CCP012D

$44.30/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Din	Diode	No
Power Consumption	19 - High Watt	Division	Hydraulic Systems Division
Resistance	7.58 Ω	Coil Type	Puissant
For Fluid Type	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	n/a	Maximum Operating Temperature	200 °C
Seal Material	n/a	Function	1/2" Super Coil
Current	1.58 A	Minimum Operating Temperature	-40 °C
Duty Cycle	Continuous @ 100% Voltage	Flow Rate	n/a
Maximum Operating Pressure	n/a	Actuation Type	n/a
Body Material	n/a	Weight	0.44 lb

Product resources

Literature and Reference Materials
