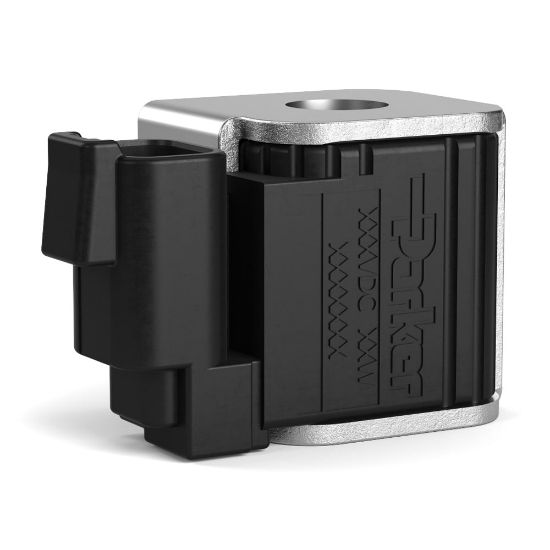

CCP012H - 1/2" Super Coil

Parker's broad range of solenoid and proportional cartridge valves are complemented by a wide selection of options in the Super Coil series of IP69K DC and AC coils. Multiple voltage and termination styles are standard cataloged options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 60 days
Partner Available:	211 in stock

SKU CCP012H

$42.77/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Voltage	12 VDC
Connection Type	Integral Deutsch	Diode	No
Power Consumption	19 - High Watt	Function	1/2" Super Coil
Minimum Operating Temperature	-40 °F	Current	1.58 A
Duty Cycle	Continuous @ 100% Voltage	Actuation Type	n/a
Flow Rate	n/a	Weight	0.44 lb
Maximum Operating Pressure	n/a	Body Material	n/a
Resistance	7.58 Ω	Division	Hydraulic Systems Division
Maximum Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
Coil Type	Puissant	For Fluid Type	n/a
Seal Material	n/a	Maximum Operating Temperature	392 °F
