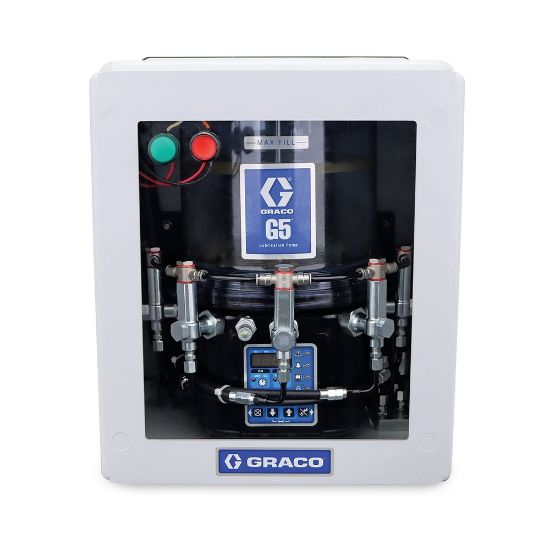

134010

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 134010

$5,823.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Pressure and Cycle Sensor Inputs	3
Series	Pro	Weight	46.9 lb
Alarm Relay Resistive Maximum Operating Current	3 A	Maximum Working Pressure	4250 psi
Number of Machine Count Sensor Inputs	1	Enclosure Dimensions	17.75 Inch; 14.94 Inch; 13.00 Inch
Alarm Relay Inductive Maximum Operating Current	1.5 A	Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W
Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W	Pump Output with 1 Spacer	0.1 Cubic Inch/min
Overall Depth	15.2 Inch	Fluid Outlet Thread Type	NPT
Pump Output with 2 Spacers	0.06 Cubic Inch/min	Alarm Relay Resistive Rated Load	2 A
Fluid Outlet Size	0.125 Inch	Maximum Operating Temperature	185 deg F
Maximum Voltage	30 VDC	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Maximum Fluid Output Pressure	4250 psi	Alarm Relay Inductive Rated Load	1 A
Maximum Run Time	30 min	Minimum cST Grade	40 cST
Model	G5	Alarm Relay Inductive Minimum Permissible Load	10 A;10m VDC
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Number of Pump Elements	5	Reservoir Size	1.06 gal
Overall Width	14.94 Inch	Fluid Inlet Thread Gender	Female
IP Rating	IP69K	Maximum NLGI Grade	#2
Voltage	24 VDC	Fluid Inlet Thread Type	NPT
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Number of Outlets	5
Maximum Fill Inlet Pressure	5000 psi	Overall Height	17.75 Inch
Fluid Outlet Thread Gender	Female	Control Options	Pro
