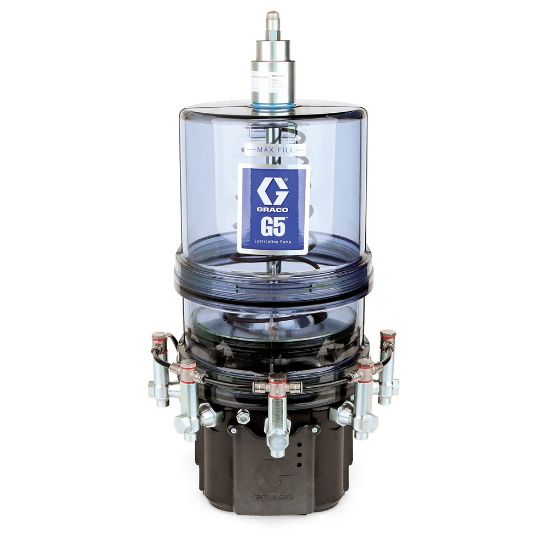

134180

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 134180

$5,291.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Machine Count Sensor Inputs	1
Maximum Working Pressure	4250 psi	Alarm Relay Resistive Maximum Operating Current	3 A
Alarm Relay Resistive Maximum Switching Capacity	50 VA;60 W	Weight	21.6 lb
Alarm Relay Inductive Maximum Operating Current	1.5 A	Series	Pro
Number of Pressure and Cycle Sensor Inputs	3	Alarm Relay Inductive Maximum Switching Capacity	25 VA;30 W
Maximum Run Time	30 min	Alarm Relay Inductive Rated Load	1 A
Minimum cST Grade	40 cST	Reservoir Size	2.11 gal
Overall Width	9.25 Inch	Model	G5
Pump Output with 1 Spacer	0.1 Cubic Inch/min	Power Connection Type	DIN
Fluid Inlet Thread Gender	Female	IP Rating	IP69K
Maximum NLGI Grade	#2	Number of Pump Elements	5
Maximum Fluid Output Pressure	4250 psi	Pump Output with 0 Spacers	0.16 Cubic Inch/min
Fluid Outlet Thread Gender	Female	Overall Depth	11.18 Inch
Maximum Fill Inlet Pressure	5000 psi	Fluid Outlet Thread Type	NPSF
Alarm Relay Inductive Maximum Operating Voltage	220 VDC	Minimum Operating Temperature	-40 deg F
Control Options	Pro	Fluid Outlet Size	0.25 Inch
Minimum Voltage	18 VDC	Pump Output with 2 Spacers	0.06 Cubic Inch/min
Maximum Voltage	30 VDC	Alarm Relay Resistive Rated Load	2 A
Maximum Operating Temperature	185 deg F	Overall Height	22.67 Inch
Number of Outlets	5	Fluid Inlet Thread Type	NPT
Alarm Relay Inductive Minimum Permissible Load	10 VA;10m VDC	Voltage	24 VDC
