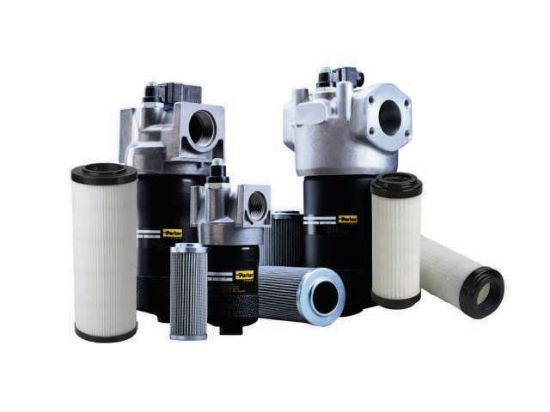

15CN110QEVPGS124 - 15CN Series Medium Pressure Filter

15CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 15CN110QEVPGS124

$308.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Element Length	Single
Port	12 SAE	Seals	Fluorocarbon
Pkg Qty	1	Options	SAE-4 drain port on bowl
UOM	EA	Max Pressure - Fatigue MAOP	800 psi (55.2 bar)
Indicator Type	Plugged Indicator	Operating Temperature	-15F to 250F (-26C to 121C)
Nominal Filter Rating	10 micron	Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)
Replacement Element	936700Q	Bypass	25 PSI (1.7 bar)
Nominal Flow Rating	10 GPM (38 LPM)	Parker Group	Filtration
Parker Division	Hydraulic Filter	Port	12 SAE
Nominal Filter Micron Rating	10 micron	Element Length	Single
Port Type	SAE	Bypass	25 PSI (1.7 bar)
Filter Type	Medium Pressure Filter	Filter Media Type	Ecoglass III
Filter Media Code	10QE	Series	15CN
Operating Temperature	-15F to 250F (-26C to 121C)	Indicator Type	Plugged Indicator
Seals	Fluorocarbon	Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)
Nominal Flow Rating	10 GPM (38 LPM)	Options	SAE-4 drain port on bowl
Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)

Product resources

CN Series (PDF)
