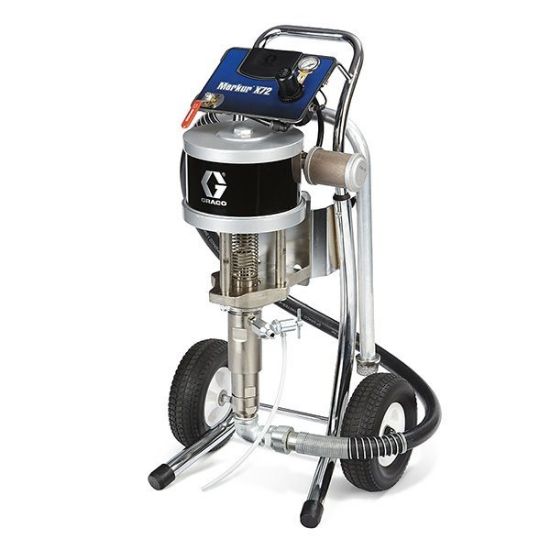

16V174

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 16V174

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Paint Strainer	8 Mesh;16 Mesh
Series	X48/X72	Maximum Working Pressure	7250 psi
Volume Per Cycle	50 Cubic cm	Lower Configuration	Carbon Steel;1-1/4 in. Inlet;Drain Valve
Pump Sleeve Material	Stainless Steel	Motor Type	Pneumatic
Hose Inlet Diameter	3/8 Inch	Model	Merkur
Power Source	Pneumatic	Fluid Inlet Thread Type	NPT
Maximum Sound Pressure Level	68.9 dB(A)	Pump Type	Displacement;Pneumatic Piston
Fluid Inlet Size	1-1/4 Inch	Maximum Air Consumption	70 SCFM
Pressure Control Type	Air Regulator	Mount Type	Cart
Fluid Outlet Thread Type	NPT	Fluid Outlet Size	3/8 Inch
Fluid Outlet Thread Gender	Male	Maximum Tip Size	0.021 Inch
Pump Rod Type	Carbon Steel	Pump Pressure Ratio	72:1
