*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1P4MA0002308

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 1P4MA0002308

$389.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Stroke Length	6 in
Port Size	1/2	Mounting Style Description	Side Tap
Corrosion Resistant	Yes	Piston Material	Aluminum
Style	Tie Rod, NFPA	Lube Specification	Non Lube Design
Filtration Required	40 micron	Cylinder Material	Clear Anodized Aluminum Alloy
Series	4MA	Bumpers	w/o Bumpers
End Type	Single Rod	Port Type	NPTF
Seal Type	Lipseal	Filter Media	Filtered Air
Rod Diameter	1 in	Rod Material	Case Hardened; Chrome-Plated Carbon Steel
Seal Material	Nitrile	Rod Thread Type	UNF
Maximum Pressure	250 psig	Maximum Temperature Range	165 °F
Minimum Temperature Range	-10 °F	Piston No.	1
Magnetic Ring	No	Cushions	Noncushioned
Mounting Style	MS4	Mounting Style Code	F
Rod End Style	Special - Specify	Bore Size	3 1/4 in

Customers who bought this item also bought

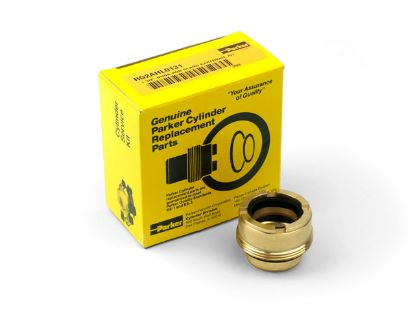

RGL6949MA1 - MA Series Rod Gland Kit
