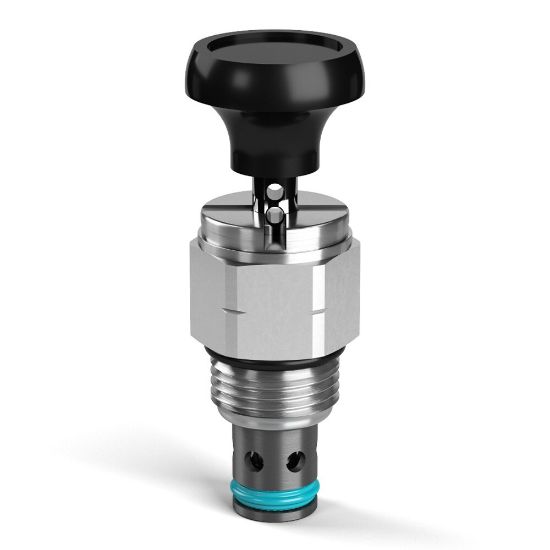

DL081T - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DL081T

$63.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Stem
Configuration	Normally Closed	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	D-Ring (Standard)	Cracking Pressure	N/A
Function	Poppet Type	Connection Size	N/A
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Maximum Inlet Pressure Rating	210 bar
Maximum Tank Pressure	80 psi	Mounting Type	Screw in cartridge valve
Flow Rate	30 L/min	Cavity Size	C08-2
Minimum Operating Temperature	-35 °F	Installation Torque	15 lb-ft
Maximum Operating Pressure	3000 psi	Weight	0.17 lb
Body Material	N/A	Configuration	Normally Closed
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Actuation Type	Stem
Operating Temperature	-37 to +93 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Connection Type	N/A	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	8 Gal/min	Maximum Operating Temperature	+93 °C
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Manual	Division	Hydraulic Systems Division
