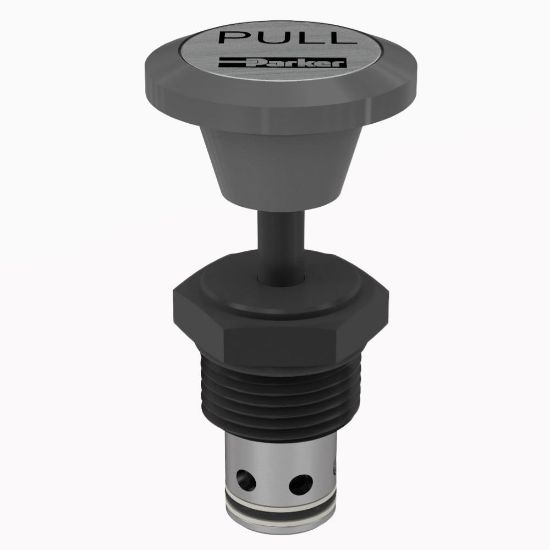

DL101K - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

Name: DL101K - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve
SKU: DL101K
Price: 95.05 USD
Availability: InStock

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:

5 in stock

Wichita, KS

Partner Available:

12 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DL101K

$95.05/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Flow Rate	13 GAL/MIN, 48.8 L/MIN	Seal Material	Nitrile
Actuation Type	Knob	Mounting Type	Screw in cartridge valve
Flow Rate	13 Gal/min	Cavity Size	C10-2
Minimum Operating Temperature	-34 °C	Installation Torque	16 lb-ft
Weight	0.09 kg	Maximum Operating Pressure	240 bar
Body Material	N/A	Configuration	Normally Closed
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Knob
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	48.8 L/min
Leak Rate	5 @ 3500 PSI (240 BAR) drops/min	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Manual
Connection Type	N/A	Division	Hydraulic Systems Division
Cracking Pressure	N/A	Function	Poppet Type
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Valve Material	All parts steel. All operating parts hardened steel
Maximum Tank Pressure	250 psi	Seal Material	Nitrile
Maximum Inlet Pressure Rating	3500 psi	Connection Size	N/A
