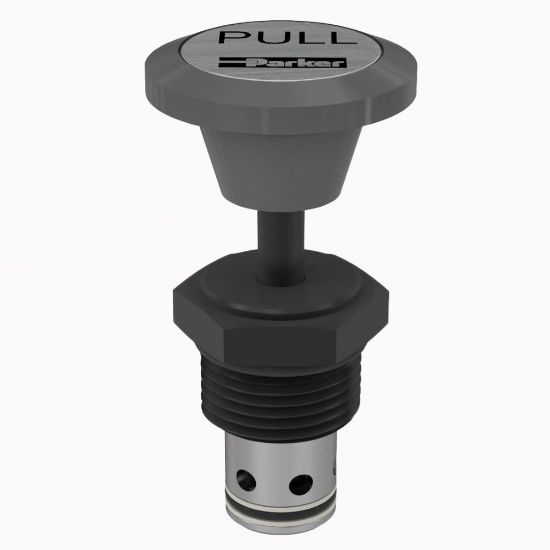

DL101TV - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DL101TV

$81.56/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Flow Rate	13 GAL/MIN, 48.8 L/MIN	Actuation Type	Stem
Configuration	Normally Closed	Installation Torque	16 lb-ft
Operation Type	Manual	Weight	0.09 kg
Body Material	N/A	Division	Hydraulic Systems Division
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Closed	Maximum Operating Pressure	240 bar
Operating Temperature	-15 to +400 °C	Actuation Type	Stem
Division	Hydraulic Cartridge Systems Division	Leak Rate	5 @ 3500 PSI (240 BAR) drops/min
Maximum Flow Rate	48.8 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Connection Type	N/A	Cracking Pressure	N/A
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Function	Poppet Type
Maximum Tank Pressure	250 psi	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	240 bar	Connection Size	N/A
Mounting Type	Screw in cartridge valve	Flow Rate	48.8 L/min
Minimum Operating Temperature	-26 °C	Cavity Size	C10-2
