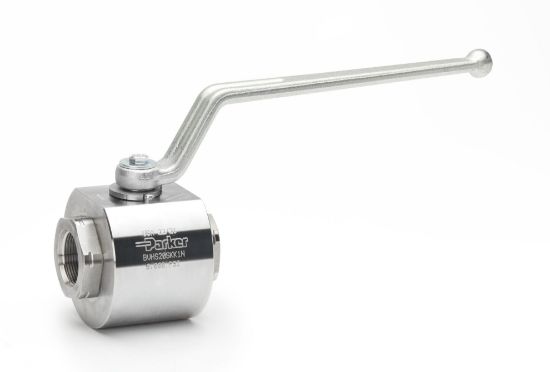

BVHS32HKK1VB - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU BVHS32HKK1VB

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Size	2"
Mounting Type	Inline	Product Type	2-Way Shut Off
Connection Type	C.62 Combo 4B+ Split	Maximum Pressure (psi)	7500 PSI
Body Material	Stainless Steel	Weight	30.0
Connection Type	C.62 Combo 4B+ Split	Maximum Operating Temperature	100
Division	Hydraulic Valve Systems Division	Function	2-Way
Seal Material	Fluorocarbon	Connection Size	2
Options	n/a	Product Type	2-Way Shut Off
Minimum Operating Temperature	-20	Mounting Type	Inline
Maximum Operating Pressure	7500	Configuration	Inline
Actuation Type	Manual	Handle Type	Security Locking Handle

Product resources

Literature and Reference Materials

CATALOG 4121-PACT

BALL VALVES: Pneumatic Actuators and Accessories (PDF)
