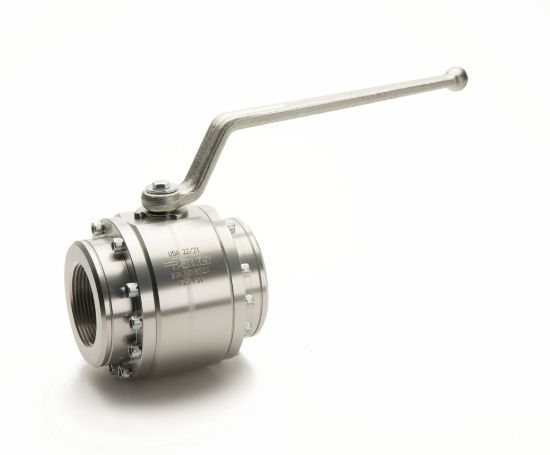

BVSL20BSS2NC - 2-way, 3-way, 4-way High Pressure Ball Valves – BV Series

Parker’s High Pressure BV Series ball valves offer a variety of porting and thread types. These valves are rated up to 11,600 psi and are zinc coated to extend the live of the valve.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU BVSL20BSS2NC

$668.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	BSPP
Connection Size	1-1/4"	Mounting Type	Inline
Product Type	2-Way Low Pressure	Maximum Pressure (psi)	1450 PSI
Configuration	Inline	Actuation Type	Manual
Maximum Operating Pressure	1450 psi	Handle Type	Standard Handle
Body Material	Aluminum	Weight	1.75 lb
Division	Hydraulic Valve Systems Division	Connection Type	BSPP
Seal Material	Nitrile	Maximum Operating Temperature	100 °F
Options	1-way Limit Switch	Function	2-Way
Product Type	2-Way Low Pressure	Connection Size	1-1/4 inch
Minimum Operating Temperature	-20 °F	Mounting Type	Inline

Product resources

Literature and Reference Materials

CATALOG 4121-PACT

BALL VALVES: Pneumatic Actuators and Accessories (PDF)
