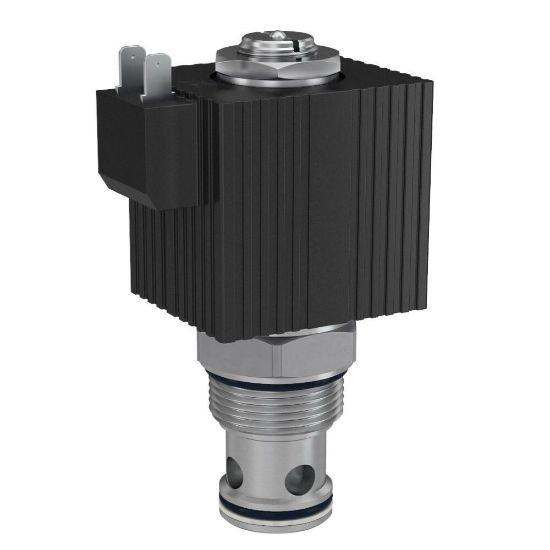

DF161C40V - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU DF161C40V

$578.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Actuation Type	Electrical	Flow Rate	40 GAL/MIN, 150 L/MIN
Configuration	Normally Closed	Division	Hydraulic Systems Division
Operation Type	Solenoid operated	Installation Torque	40 lb-ft
Actuation Type	Electrical	Body Material	N/A
Flow Rate Accuracy	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Coil Nut Tightening Torque	4.1 Nm	Maximum Operating Pressure	210 bar
Weight	0.75 lb	Configuration	Normally Closed
Maximum Operating Temperature	+204 °C	Leak Rate	125 @ 3000 PSI (210 BAR) cm3/min
Maximum Inlet Pressure Rating	210 bar	Hysteresis	4%
Minimum Pressure Differential	N/A psi	Seal Material	Fluorocarbon
Valve Material	All parts steel. All operating parts hardened steel	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Frequency	100-400 Hz	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	40.0 Gal/min	Connection Type	N/A
Coil Type	1" DS Coil High Watt	Power Consumption	42 W
Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A	Connection Size	N/A
Flow Direction	Side to Nose (2 - 1)	Variation of Closing Point	N/A
Wire Mesh Screen Included	No	Function	Proportional Flow Control/Regulator
Variation of Opening Point	20%-30% of Input Signal	Flow Rate	150 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-26 to +204 °C
Override Functionality	N/A	Minimum Operating Temperature	-15 °F
Cavity Size	C16-2
