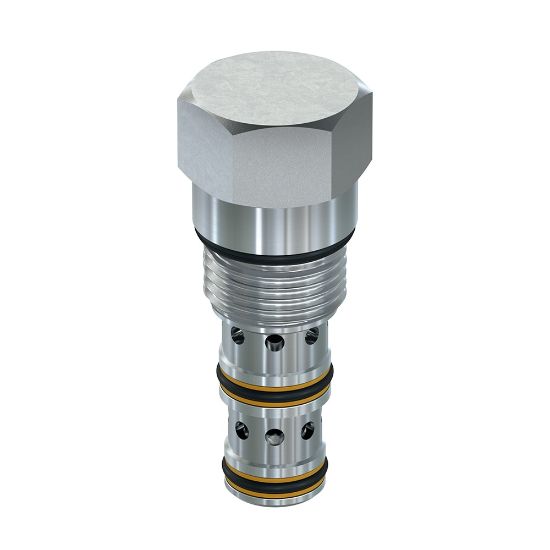

R04C3-5.0N - 2 Way Pilot Operated Directional Control Valves

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	4 in stock

SKU R04C3-5.0N

$425.56/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Sealed Pilot Included	No
Switching Pressure	73 PSI, 5 BAR	Flow Rate	21 GAL/MIN, 80 L/MIN
Maximum Operating Temperature	+250 °F	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Maximum Flow Rate	80 L/min
Sealed Pilot Included	No	Leak Rate	50 @ 1450 PSI (100 BAR) cm3/min
Function	Diverter	Maximum Inlet Pressure Rating	6000 psi
Division	Mobile Hydraulic Systems Division Europe	Body Material	N/A
Installation Torque	50 Nm	Operation Type	Pilot operated
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Standard Flow Rate Setting	40 L/min	Flow Rate	21 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Actuation Type	Pilot to Close	Drain Option	Internal
Configuration	Normally Open	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.15 kg	Maximum Operating Pressure	6000 psi
Pilot Location	External	Flow Direction	2-3 or 3-2
Cavity Size	C10-3	Minimum Operating Temperature	-34 °C
Switching Pressure	73 psi
