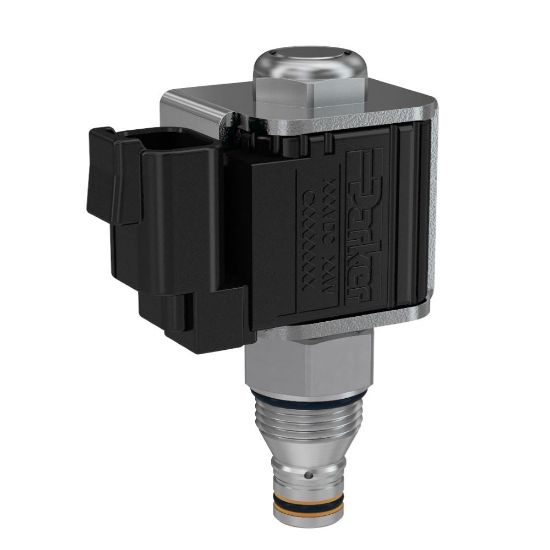

GS027201N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS027201N

$134.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	Yes
Flow Rate	0.45 GAL/MIN, 1.7 L/MIN	Installation Torque	22 lb-ft
Weight	0.14 kg	Maximum Operating Pressure	210 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Body Material	N/A
Operation Type	Solenoid operated	Division	Hydraulic Systems Division
Coil Type	1/2" Super Coil	Maximum Flow Rate	0.45 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Seat Material	Steel
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	5 drops/min	Maximum Inlet Pressure Rating	3000 psi
Flange Face Type	N/A	Maximum Operating Temperature	+121 °C
Response Time	10 ms	Bore Diameter	N/A
Flow Direction	Bi-directional	Function	2-way
Wire Mesh Screen Included	Yes	Connection Size	N/A
Minimum Operating Temperature	-30 °F	Input Voltage	85% of rated voltage at 72°F (20°C) min
Cavity Size	C08-2	Specifications Met	N/A
ANSI Flange Class	N/A	Mounting Type	Screw in cartridge valve
Override Functionality	N/A	Application	Mobile Hydraulics, Industrial Hydraulics
Configuration	Normally Closed	Coil Nut Tightening Torque	3 lb-ft
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250 °F
Flow Rate	1.7 L/min	Actuation Type	Electrical
