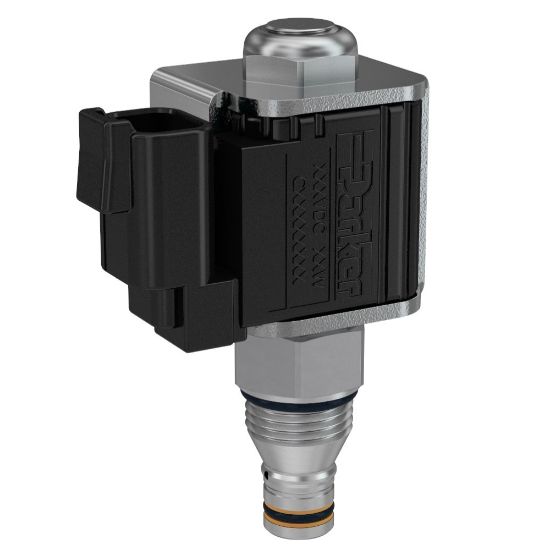

GS027800N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	8 in stock

SKU GS027800N

$192.16/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	0.45 GAL/MIN, 1.7 L/MIN	Flow Direction	Bi-directional
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	10 ms
ANSI Flange Class	N/A	Cavity Size	C08-2
Minimum Operating Temperature	-30 °F	Mounting Type	Screw in cartridge valve
Override Functionality	N/A	Flow Rate	1.7 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Application	Mobile Hydraulics, Industrial Hydraulics
Specifications Met	N/A	Actuation Type	Electrical
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.14 kg
Operating Temperature	-30 to +250 °F	Maximum Operating Pressure	3000 psi
Configuration	Normally Open	Coil Nut Tightening Torque	4.1 Nm
Body Material	N/A	Division	Hydraulic Systems Division
Operation Type	Solenoid operated	Installation Torque	30 Nm
Seat Material	Delrin®	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	1/2" Super Coil	Maximum Operating Temperature	+250 °F
Leak Rate	0 drops/min	Maximum Flow Rate	1.7 L/min
Flange Face Type	N/A	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Connection Size	N/A
Bore Diameter	N/A	Maximum Inlet Pressure Rating	3000 psi
Wire Mesh Screen Included	No	Function	2-way
