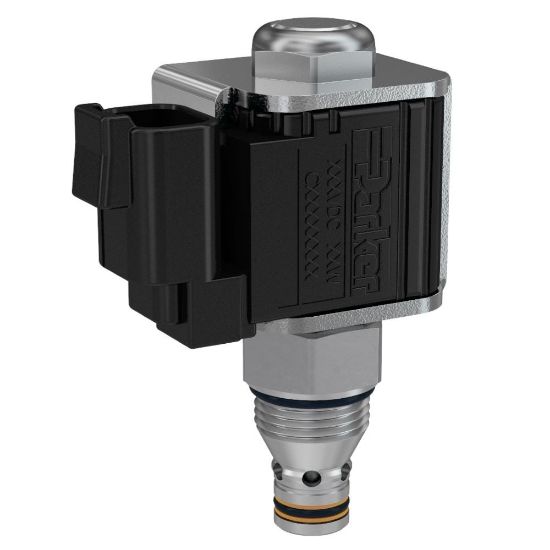

Picture of GS028000N - 2 Way Poppet Type Bi-Directional Solenoid Valve

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GS028000N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).
Manufacturer: Parker
Availability:
2 Limited Stock
Wichita, KS2
Partner Available:Backordered
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU GS028000N
$188.24/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
ConfigurationNormally ClosedFlow Rate9 GAL/MIN, 34 L/MIN
Maximum Inlet Pressure Rating3000 PSI, 210 BARActuation TypeElectrical
Wire Mesh Screen IncludedNoCavity SizeC08-2
ANSI Flange ClassN/AMinimum Operating Temperature-34 °C
Input Voltage85% of rated voltage at 72°F (20°C) minMounting TypeScrew in cartridge valve
Override FunctionalityN/AApplicationMobile Hydraulics, Industrial Hydraulics
Specifications MetN/AOperating Temperature-34 to +121 °C
Flow Rate9 Gal/minActuation TypeElectrical
ConfigurationNormally ClosedFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Coil Nut Tightening Torque4.1 NmMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Body MaterialN/AInstallation Torque22 lb-ft
Weight0.31 lbMaximum Operating Pressure210 bar
DivisionHydraulic Systems DivisionOperation TypeSolenoid operated
For Fluid TypeMineral-based or synthetic hydraulic fluidsSeat MaterialSteel
Coil Type1/2" Super Coil Low Watt (CCS)Leak Rate5 drops/min
Maximum Flow Rate34 L/minMaximum Inlet Pressure Rating3000 psi
Maximum Operating Temperature+121 °CValve MaterialAll parts steel. All operating parts hardened steel
Flange Face TypeN/ASeal MaterialNitrile
Flow DirectionBi-directionalFunction2-way
Wire Mesh Screen IncludedNoConnection SizeN/A
Response Time40 msBore DiameterN/A
