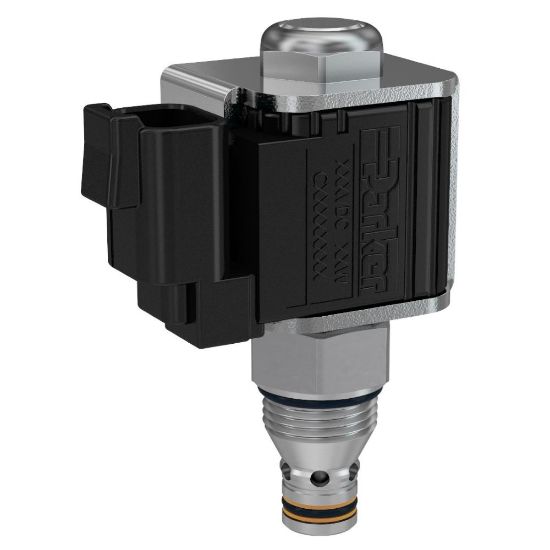

GS028500N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	10 in stock

SKU GS028500N

$257.54/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Flow Rate	9 GAL/MIN, 34 L/MIN
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Actuation Type	Electrical
Wire Mesh Screen Included	No	Seal Material	Nitrile
Maximum Inlet Pressure Rating	210 bar	Leak Rate	5 drops/min
Flange Face Type	N/A	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Response Time	40 ms
Bore Diameter	N/A	Flow Direction	Bi-directional
Connection Size	N/A	Function	2-way
Wire Mesh Screen Included	No	Input Voltage	85% of rated voltage at 72°F (20°C) min
Minimum Operating Temperature	-30 °F	Cavity Size	C08-2
ANSI Flange Class	N/A	Specifications Met	N/A
Application	Mobile Hydraulics, Industrial Hydraulics	Override Functionality	N/A
Mounting Type	Screw in cartridge valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Open	Operating Temperature	-34 to +121 °C
Coil Nut Tightening Torque	3 lb-ft	Actuation Type	Electrical
Flow Rate	34 L/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	3000 psi	Weight	0.14 kg
Body Material	N/A	Installation Torque	22 lb-ft
Operation Type	Solenoid operated	Division	Hydraulic Systems Division
Seat Material	Steel	Maximum Flow Rate	9 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Coil Type	1/2" Super Coil Low Watt (CCS)
