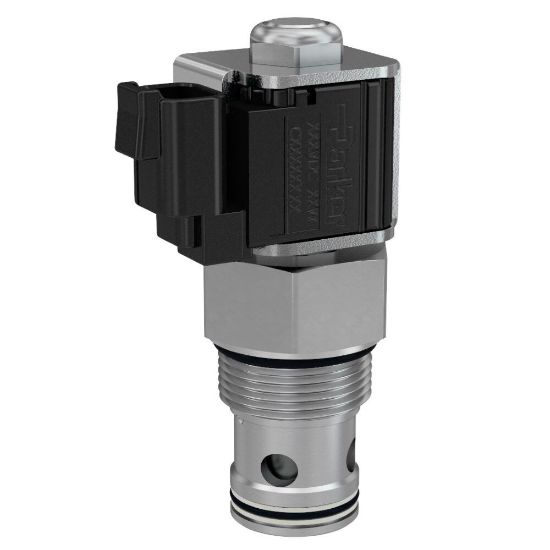

GS068500N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS068500N

$254.98/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	75 GAL/MIN, 285 L/MIN	ANSI Flange Class	N/A
Minimum Operating Temperature	-34 °C	Cavity Size	C16-2
Specifications Met	N/A	Application	Mobile Hydraulics, Industrial Hydraulics
Override Functionality	N/A	Mounting Type	Screw in cartridge valve
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	75 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Open
Operating Temperature	-34 to +121 °C	Coil Nut Tightening Torque	3 lb-ft
Actuation Type	Electrical	Maximum Operating Pressure	210 bar
Weight	0.88 lb	Body Material	N/A
Installation Torque	80 lb-ft	Operation Type	Solenoid operated
Division	Hydraulic Systems Division	Leak Rate	5 drops/min
Seat Material	Steel	Maximum Flow Rate	285 L/min
Coil Type	1/2" Super Coil Low Watt (CCS)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Seal Material	Nitrile
Maximum Inlet Pressure Rating	3000 psi	Flange Face Type	N/A
Valve Material	All parts steel. All operating parts hardened steel	Response Time	50 ms
Input Voltage	85% of rated voltage at 72°F (20°C) min	Bore Diameter	N/A
Flow Direction	Bi-directional	Connection Size	N/A
Function	2-way	Wire Mesh Screen Included	No
