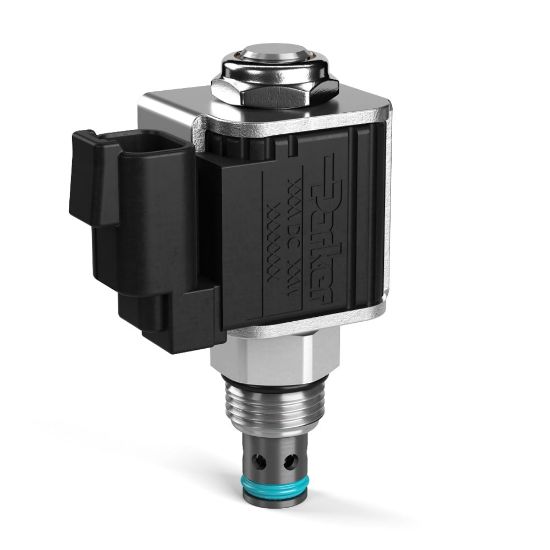

DSH081C - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	11 in stock

SKU DSH081C

$77.47/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Flow Rate	8 GAL/MIN, 30 L/MIN
Wire Mesh Screen Included	No	Division	Hydraulic Systems Division
Operating Temperature	-37 to +93 °C	Flow Rate	8 Gal/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical
Maximum Flow Rate	30 L/min	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	+200 °F	Minimum Operating Temperature	-37 °C
Body Material	N/A	Seal Material	D-Ring (Standard)
Flow Direction	Side to Nose (2-1)	Weight	0.25 lb
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	2-way
Coil Type	1/2" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	5 drops/min	Cavity Size	C08-2
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	32-36 lb-ft
Maximum Inlet Pressure Rating	5000 psi	Adjustment Mechanism	N/A
Override Functionality	N/A	Response Time	50 ms
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	5-7 lb-ft
Free Reverse Flow	No
