*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

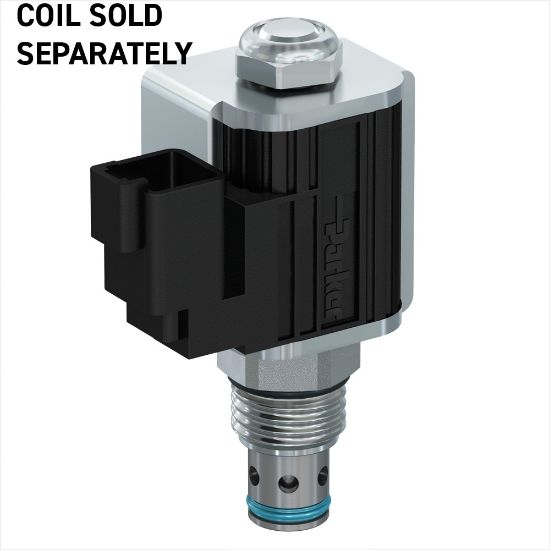

DSH101CHV - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU DSH101CHV

$106.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	15 GAL/MIN, 60 L/MIN	Division	Hydraulic Systems Division
Operating Temperature	-15 to +400 °F	Flow Rate	60 L/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical
Maximum Flow Rate	60 L/min	Maximum Operating Pressure	350 bar
Maximum Operating Temperature	+400 °F	Minimum Operating Temperature	-26 °C
Body Material	N/A	Seal Material	Fluorocarbon
Flow Direction	Side to Nose (2-1)	Weight	0.2 kg
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	2-way
Coil Type	5/8" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	5 drops/min	Cavity Size	C10-2
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	69-75 Nm
Maximum Inlet Pressure Rating	5000 psi	Adjustment Mechanism	N/A
Override Functionality	N/A	Response Time	50 ms
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	No
