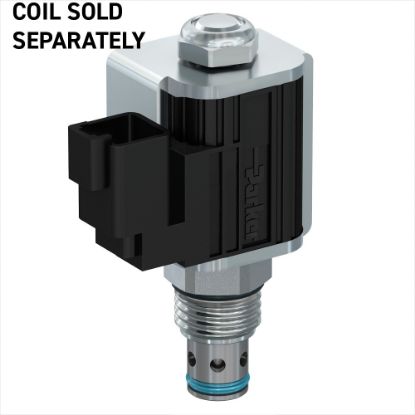

DSH101CR - 2 Way Poppet Type Solenoid Valve

Name: DSH101CR - 2 Way Poppet Type Solenoid Valve
SKU: DSH101CR
Price: 68.95 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:

12 in stock

Wichita, KS	9
Olivette, MO	3

Partner Available:

28 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU DSH101CR

$68.95/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	15 GAL/MIN, 60 L/MIN	Division	Hydraulic Systems Division
Operating Temperature	-37 to +93 °C	Flow Rate	15 Gal/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical
Maximum Flow Rate	15 Gal/min	Maximum Operating Pressure	350 bar
Maximum Operating Temperature	+93 °C	Minimum Operating Temperature	-35 °F
Body Material	N/A	Seal Material	D-Ring (Standard)
Flow Direction	Side to Nose (2-1)	Weight	0.41 lb
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	2-way
Coil Type	5/8" Super Coil	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Leak Rate	5 drops/min	Cavity Size	C10-2
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	51-55 lb-ft
Maximum Inlet Pressure Rating	350 bar	Adjustment Mechanism	N/A
Override Functionality	N/A	Response Time	80 ms
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	Yes
