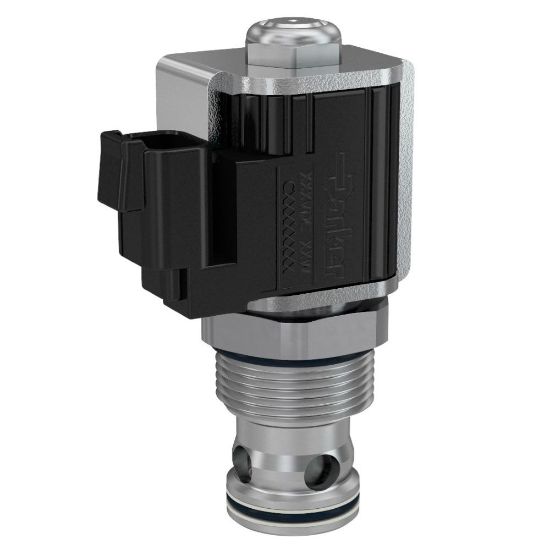

DSH161NT - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	25 in stock

SKU DSH161NT

$213.48/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	40 GAL/MIN, 150 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Weight	0.75 lb
Operation Type	Solenoid operated, Manually operated	Division	Hydraulic Systems Division
Body Material	N/A	Installation Torque	230-235 Nm
Actuation Type	Electrical, Manual	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Open	Maximum Operating Pressure	5000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to +121 °C
Coil Nut Tightening Torque	7-10 Nm	Leak Rate	5 drops/min
Maximum Flow Rate	150 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+250 °F
Coil Type	5/8" Super Coil	Response Time	45 ms
Function	2-way	Flow Direction	Side to Nose (2-1)
Input Voltage	85% of rated voltage at 72°F (20°C) min	Wire Mesh Screen Included	No
Seal Material	Nitrile	Maximum Inlet Pressure Rating	350 bar
Flow Rate	40 Gal/min	Mounting Type	Screw in cartridge valve
Override Functionality	Push and Twist	Minimum Operating Temperature	-30 °F
Adjustment Mechanism	N/A	Cavity Size	C16-2
Free Reverse Flow	No
