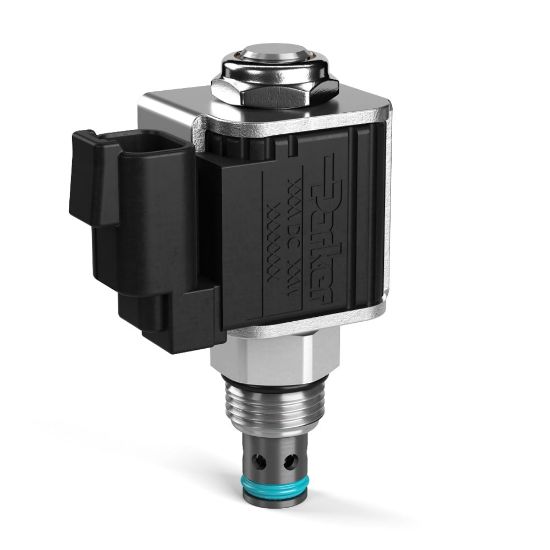

DSL081CTV - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL081CTV

$90.26/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Flow Rate	8 GAL/MIN, 30 L/MIN
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Installation Torque	23-27 lb-ft
Body Material	N/A	Division	Hydraulic Systems Division
Operation Type	Solenoid operated, Manually operated	Weight	0.25 lb
Operating Temperature	-15 to +400 °F	Coil Nut Tightening Torque	5-7 lb-ft
Configuration	Normally Closed	Maximum Operating Pressure	3600 psi
Actuation Type	Electrical, Manual	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Flow Rate	30 L/min
Valve Material	All parts steel. All operating parts hardened steel	Leak Rate	5 drops/min
Maximum Operating Temperature	+400 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	1/2" Super Coil	Wire Mesh Screen Included	No
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Flow Direction	Side to Nose (2-1)	Seal Material	Fluorocarbon
Function	2-way	Maximum Inlet Pressure Rating	3600 psi
Mounting Type	Screw in cartridge valve	Flow Rate	30 L/min
Adjustment Mechanism	N/A	Cavity Size	C08-2
Minimum Operating Temperature	-26 °C	Free Reverse Flow	No
Override Functionality	Push and Twist
