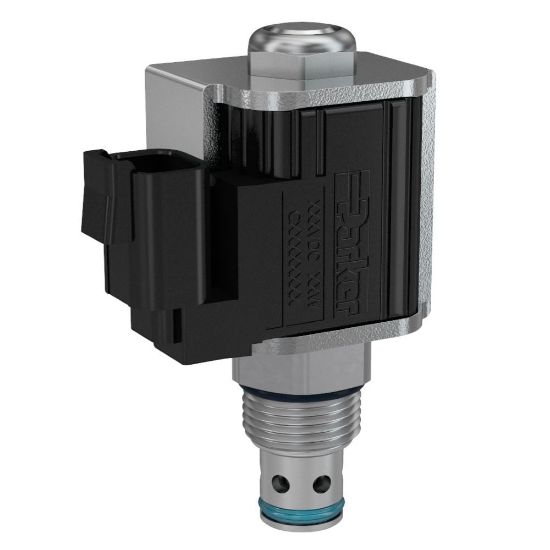

DSL101CHP - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL101CHP

$102.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Flow Rate	15 GAL/MIN, 60 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Maximum Operating Temperature	+200 °F
Leak Rate	5 drops/min	Maximum Flow Rate	15 Gal/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Coil Type	5/8" Super Coil	Response Time	50 ms
Function	2-way	Input Voltage	85% of rated voltage at 72°F (20°C) min
Flow Direction	Side to Nose (2-1)	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 psi	Seal Material	D-Ring (Standard)
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate	60 L/min
Mounting Type	Screw in cartridge valve	Override Functionality	Pull and Release
Minimum Operating Temperature	-35 °F	Adjustment Mechanism	N/A
Cavity Size	C10-2	Free Reverse Flow	No
Body Material	N/A	Weight	0.41 lb
Division	Hydraulic Systems Division	Installation Torque	37-41 lb-ft
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical, Manual
Configuration	Normally Closed	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-35 to +200 °F	Coil Nut Tightening Torque	5-7 lb-ft
Maximum Operating Pressure	3600 psi
