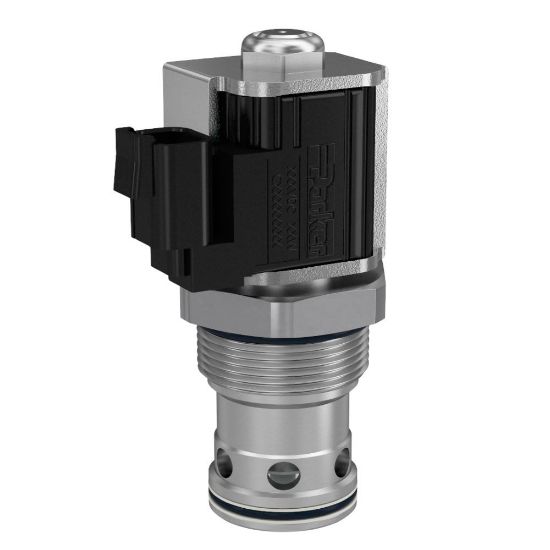

DSL201NT - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSL201NT

$247.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Flow Rate	70 GAL/MIN, 260 L/MIN	Mounting Type	Screw in cartridge valve
Override Functionality	Push and Twist	Input Voltage	85% of rated voltage at 72°F (20°C) min
Minimum Operating Temperature	-30 °F	Adjustment Mechanism	N/A
Cavity Size	C20-2	Free Reverse Flow	No
Maximum Operating Pressure	3600 psi	Installation Torque	250-275 lb-ft
Body Material	N/A	Weight	0.75 lb
Operating Temperature	-34 to +121 °C	Coil Nut Tightening Torque	5-7 lb-ft
Flow Rate	70 Gal/min	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Actuation Type	Electrical, Manual	Configuration	Normally Open
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Coil Type	5/8" Super Coil
Maximum Flow Rate	70 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Leak Rate	5 drops/min	Division	Hydraulic Systems Division
Operation Type	Solenoid operated, Manually operated	Function	2-way
Wire Mesh Screen Included	No	Flow Direction	Side to Nose (2-1)
Response Time	300 ms	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+121 °C
Maximum Inlet Pressure Rating	250 bar
