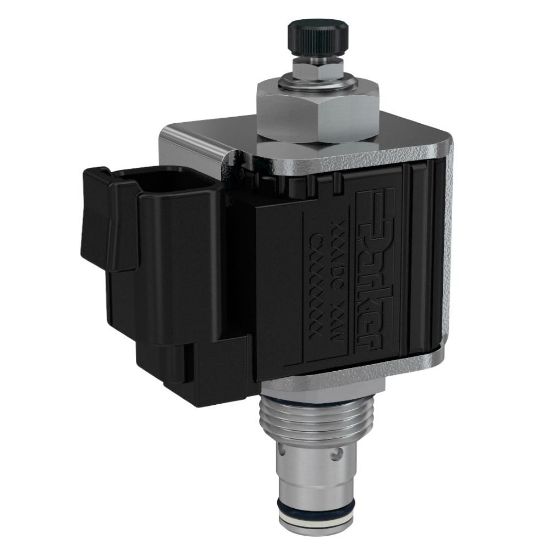

GH02011N - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 351 days
Partner Available:	Backordered

SKU GH02011N

$1,377.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	3 GAL/MIN, 11 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	Yes	Configuration	Normally Closed w/Flow Control Adjustment
Maximum Inlet Pressure Rating	4000 PSI, 285 BAR	Function	2-way
Flow Direction	Side to Nose (2-1)	Wire Mesh Screen Included	Yes
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	20 ms
Free Reverse Flow	No	Adjustment Mechanism	Knob Adjustment
Cavity Size	C08-2	Minimum Operating Temperature	-30 °F
Leak Rate	5 drops/min	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	3 Gal/min
Maximum Inlet Pressure Rating	285 bar	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Nitrile	Body Material	N/A
Installation Torque	27 Nm	Weight	0.09 kg
Maximum Operating Pressure	4000 psi	Division	Hydraulic Systems Division
Operation Type	Solenoid operated, Manually operated	Coil Type	1/2" Super Coil
Mounting Type	Screw in cartridge valve	Flow Rate	3 Gal/min
Override Functionality	N/A	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Electrical, Manual
Configuration	Normally Closed w/Flow Control Adjustment	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Coil Nut Tightening Torque	4.1 Nm
