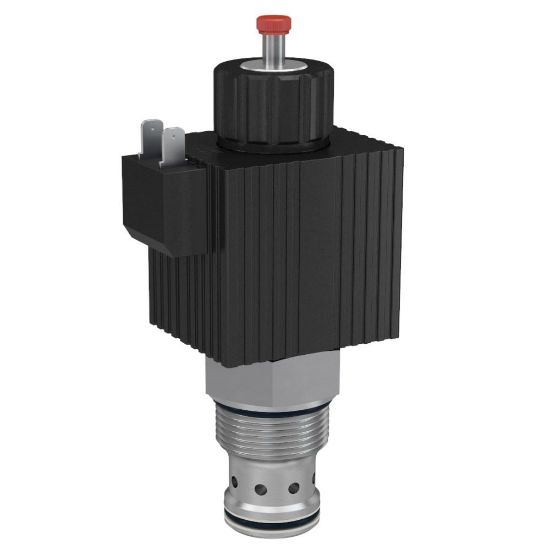

DS162CV - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DS162CV

$231.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Flow Rate	20 GAL/MIN, 75 L/MIN
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Wire Mesh Screen Included	No	Division	Hydraulic Systems Division
Operating Temperature	-26 to +204 °C	Flow Rate	75 L/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical, Manual
Maximum Flow Rate	20 Gal/min	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	+204 °C	Minimum Operating Temperature	-26 °C
Body Material	N/A	Seal Material	Fluorocarbon
Weight	1.3 lb	Mounting Type	Screw in cartridge valve
Operation Type	Solenoid operated, Manually operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	2-way	Coil Type	1" DS Coil
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	240 CC/min @ 3000 PSI (210 BAR) cm3/min
Cavity Size	C16-2	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	54 Nm	Maximum Inlet Pressure Rating	3000 psi
Override Functionality	Push	Response Time	90 ms
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	3 lb-ft
