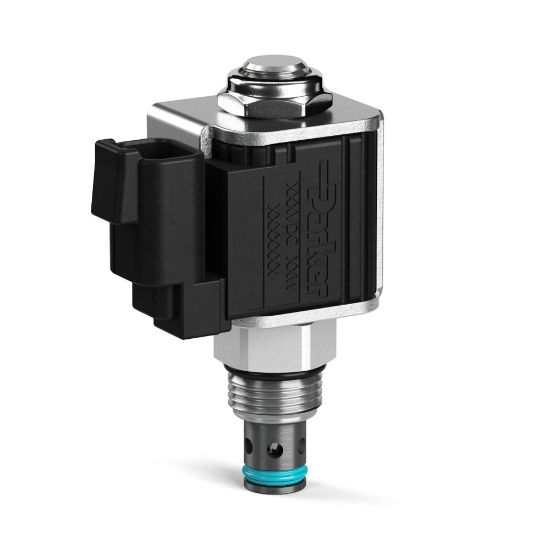

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

DSH082C - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DSH082C

$73.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring
Actuation Type	Electrical	Flow Rate	4 GAL/MIN, 15 L/MIN
Wire Mesh Screen Included	No	Division	Hydraulic Systems Division
Operating Temperature	-35 to +200 °F	Flow Rate	4 Gal/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Actuation Type	Electrical
Maximum Flow Rate	4 Gal/min	Maximum Operating Pressure	5000 psi
Maximum Operating Temperature	+200 °F	Minimum Operating Temperature	-35 °F
Body Material	N/A	Seal Material	D-Ring
Weight	0.25 lb	Mounting Type	Screw in cartridge valve
Operation Type	Solenoid operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	2-way	Coil Type	1/2" Super Coil
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min
Cavity Size	C08-2	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	32-36 lb-ft	Maximum Inlet Pressure Rating	350 bar
Override Functionality	N/A	Response Time	40 ms
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	7-10 Nm
