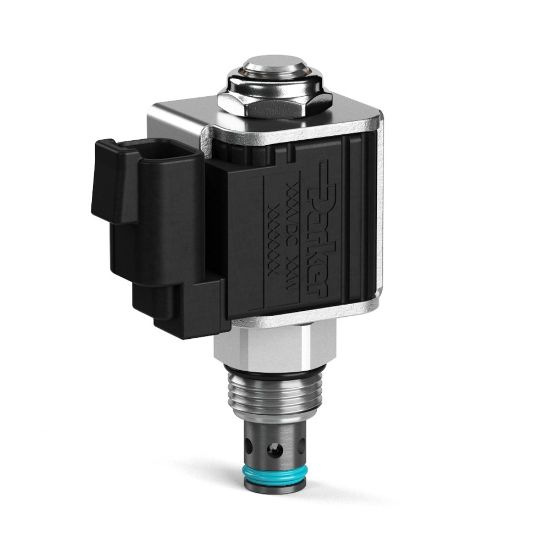

DSL082CT - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL082CT

$101.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Seal Material	D-Ring	Actuation Type	Electrical, Manual
Flow Rate	4 GAL/MIN, 15 L/MIN	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Coil Type	1/2" Super Coil
Body Material	N/A	Division	Hydraulic Systems Division
Installation Torque	23-27 lb-ft	Operation Type	Solenoid operated, Manually operated
Weight	0.11 kg	Maximum Inlet Pressure Rating	250 bar
Seal Material	D-Ring	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+93 °C	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	120 CC/min @ 3600 PSI (250 BAR) cm3/min	Maximum Flow Rate	4 Gal/min
Cavity Size	C08-2	Minimum Operating Temperature	-35 °F
Override Functionality	Push and Twist	Function	2-way
Wire Mesh Screen Included	No	Response Time	40 ms
Input Voltage	85% of rated voltage at 72°F (20°C) min	Operating Temperature	-35 to +200 °F
Actuation Type	Electrical, Manual	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Nut Tightening Torque	7-10 Nm
Configuration	Normally Closed	Maximum Operating Pressure	250 bar
Mounting Type	Screw in cartridge valve	Flow Rate	4 Gal/min
