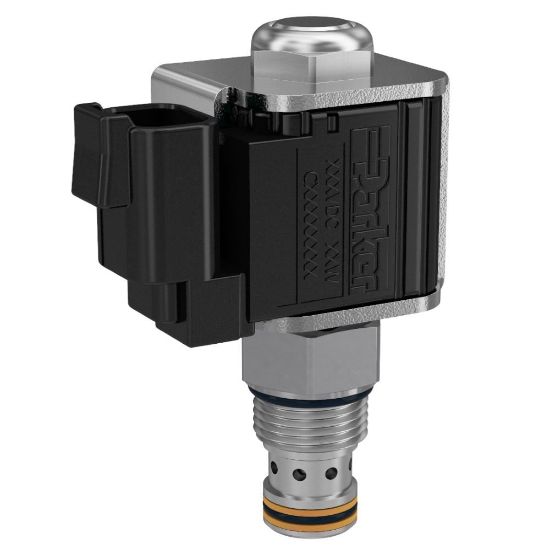

GS022220V - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS022220V

$175.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Mounting Type	Screw in cartridge valve
Minimum Operating Temperature	-15 °F	Cavity Size	C09-2
Override Functionality	Detetented	Flow Rate	19 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Actuation Type	Electrical, Manual
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	350 bar	Configuration	Normally Closed
Coil Nut Tightening Torque	3 lb-ft	Body Material	N/A
Division	Hydraulic Systems Division	Weight	0.14 lb
Operation Type	Solenoid operated, Manually operated	Installation Torque	30 Nm
Coil Type	1/2" Super Coil	Maximum Operating Temperature	+400 °F
Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Flow Rate	19 L/min	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 psi
Wire Mesh Screen Included	No	Function	2-way
