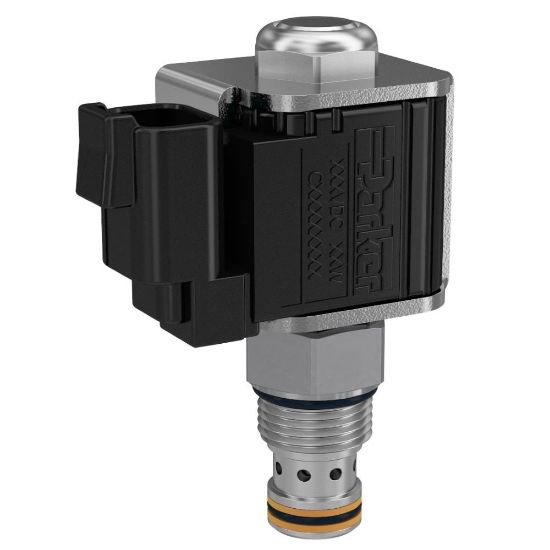

GS022700N - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS022700N

$116.33/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No	Maximum Operating Pressure	5000 psi
Body Material	N/A	Coil Nut Tightening Torque	4.1 Nm
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Weight	0.31 kg
Division	Hydraulic Systems Division	Installation Torque	22 lb-ft
Operation Type	Solenoid operated	Coil Type	1/2" Super Coil
Maximum Flow Rate	19 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+250 °F
Seal Material	Nitrile	Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min
Maximum Inlet Pressure Rating	350 bar	Function	2-way
Wire Mesh Screen Included	No	Response Time	50 ms
Input Voltage	85% of rated voltage at 72°F (20°C) min	Minimum Operating Temperature	-34 °C
Cavity Size	C09-2	Override Functionality	N/A
Mounting Type	Screw in cartridge valve	Operating Temperature	-34 to +121 °C
Flow Rate	19 L/min	Actuation Type	Electrical
Configuration	Normally Open	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
