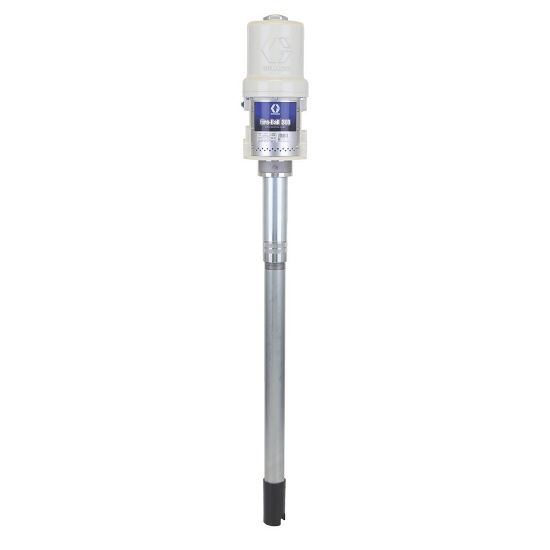

203857

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 203857

Products specifications

Attribute name	Attribute value
UOM	EA	Cycles Per Gallon	30
Maximum Working Pressure	900 psi	Weight	17 lb
Series	300	Maximum Continuous Cycle Rate	70 CPM
Maximum Air Consumption	25 SCFM	Fluid Outlet Size	1/2 Inch
Sound Power Level	85.6 dB(A)	Maximum Intermittent Cycle Rate	70 CPM
Maximum Air Inlet Pressure	180 psi	Air Inlet Thread Gender	Female
Fluid Inlet Thread Gender	Female	Pump Ratio	5:1
Fluid Inlet Size	1-1/2 Inch	Sound Pressure Level	77.8 dB(A)
Air Inlet Size	3/8 Inch	Fluid Outlet Thread Type	NPT
Air Inlet Thread Type	NPT	Fluid Inlet Thread Type	NPT
Fluid Outlet Thread Gender	Female	Model	Fire-Ball
Air Motor Effective Diameter	3 Inch
