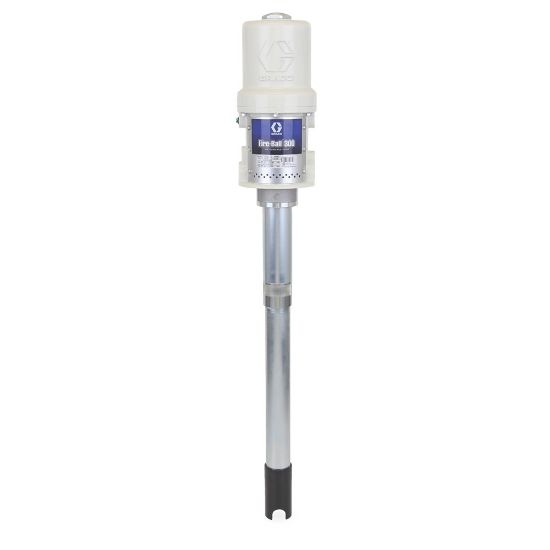

203872

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 203872

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	900 psi
Series	300	Cycles Per Gallon	30
Weight	17 lb	Air Inlet Size	3/8 Inch
Fluid Outlet Thread Type	NPT	Air Inlet Thread Type	NPT
Maximum Air Inlet Pressure	180 psi	Maximum Intermittent Cycle Rate	70 CPM
Fluid Inlet Thread Type	NPT	Sound Pressure Level	77.8 dB(A)
Air Motor Effective Diameter	3 Inch	Maximum Continuous Cycle Rate	70 CPM
Maximum Air Consumption	25 SCFM	Model	Fire-Ball
Fluid Outlet Size	1/2 Inch	Fluid Outlet Thread Gender	Female
Fluid Inlet Size	1-1/2 Inch	Air Inlet Thread Gender	Female
Sound Power Level	85.6 dB(A)	Fluid Inlet Thread Gender	Female
Pump Ratio	5:1
