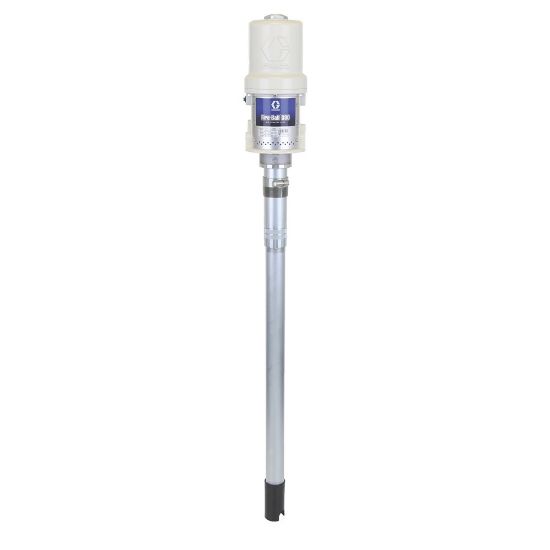

204254

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 204254

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	17 lb
Series	300	Maximum Working Pressure	900 psi
Cycles Per Gallon	30	Air Inlet Size	3/8 Inch
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Maximum Intermittent Cycle Rate	70 CPM	Fluid Inlet Thread Type	NPT
Fluid Outlet Thread Gender	Female	Model	Fire-Ball
Sound Pressure Level	77.8 dB(A)	Air Motor Effective Diameter	3 Inch
Maximum Continuous Cycle Rate	70 CPM	Fluid Outlet Size	1/2 Inch
Maximum Air Consumption	25 SCFM	Maximum Air Inlet Pressure	180 psi
Air Inlet Thread Gender	Female	Sound Power Level	85.6 dB(A)
Pump Ratio	5:1	Fluid Inlet Thread Gender	Female
Fluid Inlet Size	1-1/2 Inch
