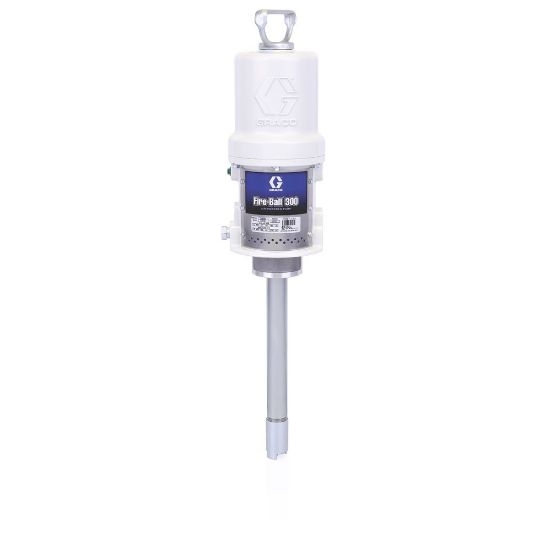

206405

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 206405

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	2700 psi
Weight	22 lb	Series	300
Cycles Per Gallon	90	Air Inlet Thread Type	NPT
Maximum Air Inlet Pressure	180 psi	Air Inlet Thread Gender	Female
Sound Power Level	85.6 dB(A)	Sound Pressure Level	77.8 dB(A)
Air Motor Effective Diameter	3 Inch	Fluid Outlet Size	1/4 Inch
Fluid Outlet Thread Type	NPT	Air Inlet Size	3/8 Inch
Fluid Outlet Thread Gender	Female	Maximum Air Consumption	14 SCFM
Model	Fire-Ball	Maximum Continuous Cycle Rate	66 CPM
Pump Ratio	15:1
