*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

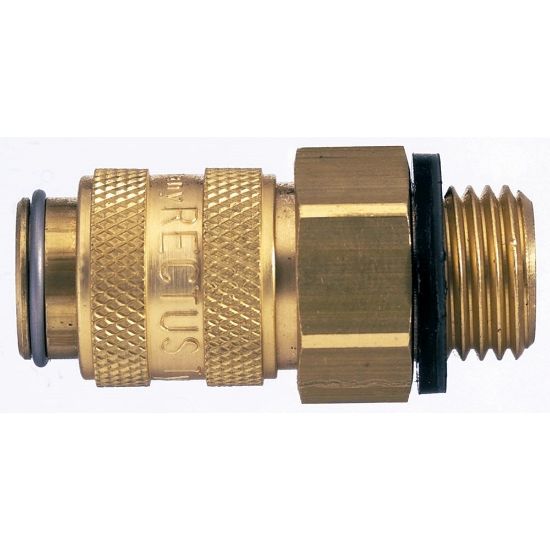

21KAAW13MPN

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 8 days
Partner Available:	Backordered

SKU 21KAAW13MPN

$28.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Outside Diameter	16 mm
Material	Brass	Standard	RoHS
Flow Rate	550 lpm (Air)	For Fluid Type	Air
Technology	Pneumatics	Connection Size	G 1/4 Inch
Connection Type	Male, BSPP	Function	Single Shut-Off
Valve Included	Yes	Application	Food & Beverages
Compatible Fitting	Series 21 Plug	Shape	Straight
Operation Type	Sleeve	Materials of Construction	Brass, Nickel-Plated
Version	Single Shut-Off	Sleeve Material	Brass
Seal Material	NBR	Maximum Operating Temperature	100 °C
Hex Size	17 mm	Coupling Half	Coupler
Flow Diameter	5 mm (Nominal)	Interchange Type	European Profile
Minimum Operating Temperature	-4 °F	Plating Type	Nickel-Plated
Product Series	Series 21	Valve Type	Standard Valve
Product Type	Pneumatic Quick Couplings
