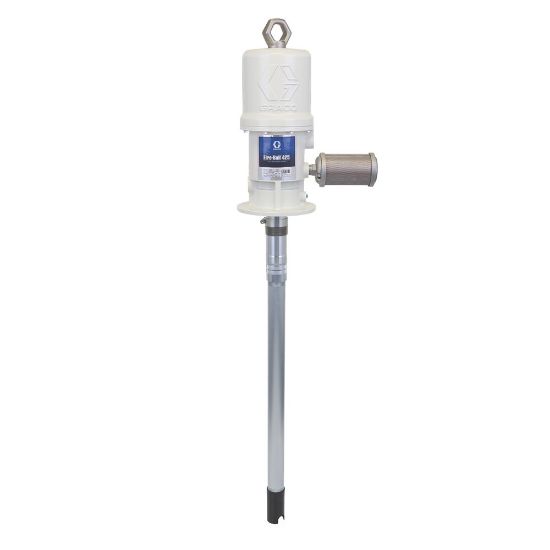

222095

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 222095

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	28.7 lb
Series	425	Maximum Working Pressure	1800 psi
Cycles Per Gallon	19.6	Maximum Continuous Cycle Rate	66 CPM
Fluid Outlet Size	3/4 Inch	Fluid Outlet Thread Gender	Female
Sound Pressure Level	78 dB(A)	Air Inlet Thread Gender	Female
Maximum Air Inlet Pressure	180 psi	Air Inlet Size	0.5 Inch
Fluid Inlet Thread Gender	Female	Fluid Inlet Size	1-1/2 Inch
Air Inlet Thread Type	NPT	Pump Ratio	10:1
Fluid Outlet Thread Type	NPT	Maximum Intermittent Cycle Rate	66 CPM
Seal Material	Polyurethane with Nitrile Spreader	Fluid Inlet Thread Type	NPT
Model	Fire-Ball	Air Motor Effective Diameter	4.25 Inch
