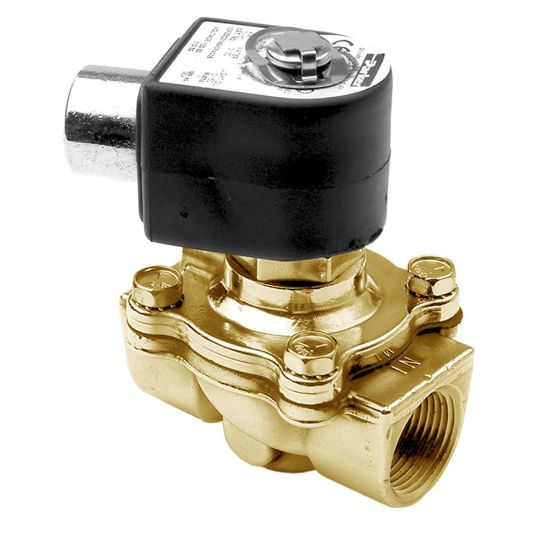

08F23O2140A3F4C75 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 08F23O2140A3F4C75

$471.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Open	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	1/2	Port Type	NPT
Installation	IOM 7321	Orifice Size	5/8
Body Material	BRASS	Input Voltage	12.0
Seal Material	NBR	Actuation Type	Direct Lift
Insulation Class	Class F	Power Consumption	11.5
Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	4.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	150.0	Preventive Maintenance Kit	08F23O2140A3FR
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	125 (80 Light Oil)
Minimum Pressure Differential	0.0	Specifications Met	UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC
Maximum Fluid Temperature	150.0 °F	Port Type	NPT
Preventive Maintenance Kit	08F23O2140A3FR	Orifice Size	5/8 inch
Maximum Pressure Differential	125 (80 Light Oil) psi	Body Material	Brass
Actuation Type	Direct Lift	Ingress Protection Rating	NEMA 4,4X
Insulation Class	Class F	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Maximum Ambient Temperature	77.0 °F	Division	Fluid Control Division
Seal Material	NBR	Minimum Pressure Differential	0.0 psi
Function	Normally Open	Installation	IOM 7321
Main Flow Coefficient	4.0 Cv	Media	General Purpose
Input Voltage	12.0 VDC	Port Size	1/2 inch
Power Consumption	11.5 W	Valve Configuration	2 Way
