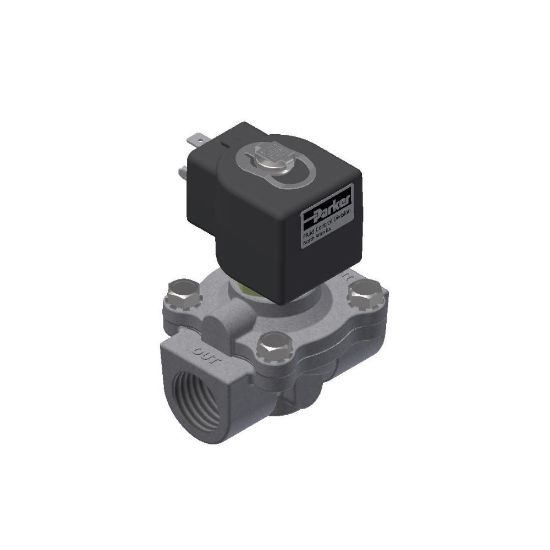

12F23C6448ACFPH01 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 12F23C6448ACFPH01

$1,105.44/each

Products specifications

Attribute name	Attribute value
UOM	EA	Media	General Purpose
Function	Normally Closed	Coil Type	DIN 43650A / ISO 4400
Port Size	3/4	Port Type	NPT
Installation	IOM 7321	Orifice Size	3/4
Body Material	316 Stainless Steel	Input Voltage	24/60
Seal Material	PTFE	Actuation Type	Direct Lift
Insulation Class	Class F	Power Consumption	11.0
Specifications Met	UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Main Flow Coefficient	5.0	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	180.0	Preventive Maintenance Kit	12F23C6448ACFR
Maximum Ambient Temperature	130.0	Maximum Pressure Differential	150.0
Minimum Pressure Differential	0.0	Division	Fluid Control Division
Media	General Purpose	Port Size	3/4 inch
Port Type	NPT	Input Voltage	24/60 VAC
Actuation Type	Direct Lift	Power Consumption	11.0 W
Body Material	316 Stainless Steel	Seal Material	PTFE
Specifications Met	UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC	Maximum Pressure Differential	150.0 psi
Ingress Protection Rating	NEMA 4,4X	Function	Normally Closed
Coil Type	DIN 43650A / ISO 4400	Maximum Fluid Temperature	180.0 °F
Minimum Pressure Differential	0.0 psi	Main Flow Coefficient	5.0 Cv
Installation	IOM 7321	Orifice Size	3/4 inch
Insulation Class	Class F	Valve Configuration	2 Way
Preventive Maintenance Kit	12F23C6448ACFR	Maximum Ambient Temperature	130.0 °F
